Description

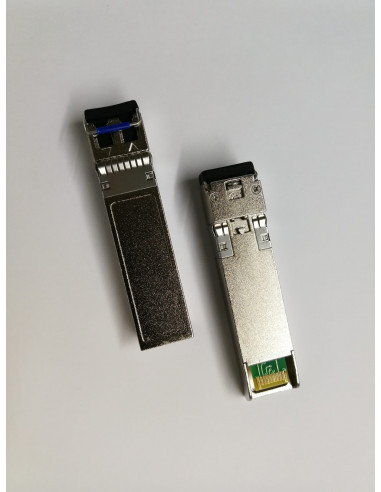

Maximize your fiber optic network’s efficiency and bandwidth with our high-performance 1.25G SFP Bi-Directional Transceiver. Designed specifically for single-mode fiber infrastructure, this module utilizes wavelength division multiplexing with a 1310nm receiver and 1550nm transmitter to send and receive data simultaneously over a single strand of glass. This cuts your cabling costs in half while doubling your existing fiber capacity, making it the ideal solution for enterprise networks, data centers, and telecommunications providers.
Equipped with Digital Diagnostics Monitoring (DDM), network administrators gain real-time access to critical operating parameters such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. This ensures proactive maintenance and minimizes unexpected network downtime.
- Data Rate: 1.25 Gbps
- Wavelength: TX 1550nm / RX 1310nm
- Transmission Distance: Up to 10km
- Connector Type: Simplex LC
- Fiber Type: Single-Mode Fiber (SMF)
- Diagnostics: Built-in DDM / DOM
- Hot-Pluggable SFP Footprint
Q: Is this SFP transceiver compatible with Cisco, HP, and other major switch brands?
A: Yes, our transceivers are MSA (Multi-Source Agreement) compliant and can be custom-coded or programmed to ensure seamless compatibility with most major networking hardware vendors.
Q: Can I connect a 1310/1550nm module directly to another 1310/1550nm module?
A: No, Bi-Directional (BiDi) transceivers must be paired inversely. You must use a T1310/R1550nm module on one end of the fiber link and a T1550/R1310nm module on the opposite end.
Q: What is the maximum operating temperature range for this module?
A: This transceiver is built for standard commercial temperature ranges, typically operating reliably between 0°C to 70°C (32°F to 158°F).
